Steel Fabrication Drawing Services for Workshop Production
Assembly, member, single-part and plate drawings with controlled dimensions, materials, cuts, holes, copes, welds, bolts, connection components, bills of material and agreed digital production data for structural and miscellaneous steel fabrication.
Workshop Documents That Describe How Steel Components Are Made and Assembled
Fabrication drawings provide the dimensions, materials, geometry and production information required to manufacture individual steel parts and combine them into identified assemblies. They are typically developed from an approved structural-steel model, engineering drawings, connection information and the fabricator’s shop standards.
The drawing package may include assembly drawings, member drawings, single-part drawings, plate details, connection components, base conditions, truss details, stair and handrail components, bolt summaries, bills of material and machine-readable files where specifically required.
Production Drawings for Structural Members, Connections, Parts and Custom Assemblies
The live page’s legitimate structural, miscellaneous and custom-metal drawing scope is retained and separated into clear production packages.
Assembly and Member Drawings
Describe the complete fabricated unit and its relationship to the individual parts that form it.
- Beams, columns and braces
- Frames, trusses and girders
- Assembly marks and member orientation
- Overall dimensions and component locations
Single-Part and Plate Drawings
Provide production information for individual plates, angles, stiffeners, cleats and other components.
- Part profiles and dimensions
- Plate thickness and material grade
- Hole patterns, slots and notches
- Cutting, bending and template references
Cutting, Drilling and Coping Details
Define member-end and component geometry required for controlled shop preparation.
- Square, mitred and profile cuts
- Plated and non-plated holes
- Copes, notches and bevels
- Drilling coordinates and edge distances
Welded and Bolted Connection Drawings
Document approved connection components and shop or field fastening information.
- Plates, angles, gussets and stiffeners
- Bolt grades, diameters and hole types
- Approved weld symbols and locations
- Splices, seats, clips and end plates
Column, Base-Plate and Foundation Details
Coordinate approved column-end conditions with base plates, anchors, leveling and concrete interfaces.
- Column and base-plate assemblies
- Anchor rods and hole patterns
- Leveling plates, nuts and washers
- Foundation and embed references
Truss, Bracing and Frame Drawings
Develop member and connection fabrication information for approved structural assemblies.
- Truss chords, webs and panel points
- Bracing members and gussets
- Built-up frames and welded assemblies
- Camber, splice and shipping references
Stair, Ladder and Handrail Fabrication Drawings
Prepare production documents for approved miscellaneous-steel and access components.
- Stringers, pans, treads and landings
- Rail posts, rails and brackets
- Ladders, cages and support plates
- Anchors, welds and installation interfaces
Anchor, Embed and Erection Interfaces
Connect the shop package with approved site and concrete-interface information.
- Anchor-setting and embed layouts
- Field bolt and field weld references
- Piece and assembly locations
- Erection and installation cross-references
Bills of Material and Bolt Summaries
Generate controlled material and fastener information from the released model or drawing package.
- Assembly and part bills of material
- Field and shop bolt summaries
- Material grades, profiles and quantities
- Drawing, part and assembly registers
CNC, DSTV, NC1 and DXF Outputs
Provide agreed digital production files from controlled model geometry.
- Member cutting and drilling data
- Plate and profile templates
- DSTV and NC1 files
- DXF or client-specific exports
Custom Metal and Mechanical Fabrication Drawings
Prepare separately scoped production drawings from approved specialist engineering.
- Machined and welded components
- Castings and assembled metal items
- Equipment frames and support components
- Mechanical sections and assembly drawings
Revision and Fabrication-Support Drawings
Update affected documents and data after authorised engineering or fabrication changes.
- Approval-comment incorporation
- RFI and design-response updates
- Material and connection revisions
- Drawing and data reissue control
Show Every Fabricated Component with the Information Required for Its Intended Production Process
The exact information depends on the fabricator’s equipment, standards, welding requirements, material handling and approval process.
Profiles, lengths, slopes, rotations, offsets, end conditions, plate shapes, holes, cuts, copes, bends and component orientation.
Approved angles, plates, gussets, stiffeners, splices, bolts, washers, holes, weld symbols and shop or field designations.
Section and plate grades, bolt and weld-material references, coating or galvanizing notes and project-specific finish information.
Piece marks, assembly marks, quantities, member orientation, included parts, drawing references, phases, sequences and release packages.
Bills of material, bolt lists, part registers, weight reports, plate templates and agreed machine-readable fabrication files.
Documents and Data for Members, Assemblies, Parts and Production Control
Every deliverable should state the intended production use, approval status and relationship to the released model.
Assembly and Member Package
Fabricated-unit drawings showing member geometry, included parts, connection components, dimensions, welds, bolts, marks, materials and overall assembly information.
Single-Part and Plate Package
Individual part drawings with profile, material, thickness, length, holes, slots, cuts, copes, bevels, bends, quantities and plate-template information.
Material and Fastener Package
Bills of material, assembly lists, part lists, field and shop bolt summaries, drawing registers, grades, weights and client-configured reports.
Digital Fabrication Package
Agreed DSTV, NC1, DXF, CNC or other production exports linked to the correct model, profile catalogue, drawing issue and authorised release.
| Output | Typical Content | Primary Use | Critical Check | Release Requirement |
|---|---|---|---|---|
| Assembly Drawing | Overall member, attached parts, dimensions, connections, welds, bolts, marks and materials | Fit-up, welding and assembly | Part relationships and approved geometry | Fabricator-authorised issue |
| Single-Part Drawing | Individual profile, length, cuts, holes, copes, bevels, material and quantity | Cutting, drilling and part preparation | Model-to-drawing and profile consistency | Released production revision |
| Plate Drawing / Template | Plate outline, thickness, holes, slots, bevels, bends and material grade | Plate cutting and preparation | Geometry, scale and nesting assumptions | Fabricator verification |
| Bolt Summary | Diameter, grade, length, quantity, hole type and shop/field classification | Procurement and assembly planning | Connection status and package boundaries | Verified against released drawings |
| Bill of Material | Profiles, plates, parts, grades, lengths, quantities and weights | Procurement and shop planning | Model status and report configuration | Released package alignment |
| DSTV / NC1 File | Machine-readable member geometry, holes, contours and production references | CNC cutting and drilling | Profile, units, revision and machine compatibility | Fabricator-approved machine release |
| DXF / Plate File | 2D plate or component geometry for cutting or template preparation | Plate production | Scale, layer rules, geometry and revision | Fabricator verification before use |
Start with the Approved Steel Model, Connection Information and Fabricator Standards
The drawing package depends on current engineering inputs and a defined shop-production environment.
Drawing Production, Engineering Approval and Fabrication Release Must Remain Separate
A detailed workshop drawing does not automatically approve the underlying design, shop method or machine instruction.
What the Detailing Team Typically Provides
The detailing team develops workshop documents and agreed data from approved steel-model and engineering sources.
- Create assembly, member, single-part and plate drawings.
- Apply approved member sizes, connections, plates, bolts and weld information.
- Show dimensions, holes, cuts, copes, bevels and component locations.
- Generate bills of material, bolt summaries and drawing registers.
- Prepare agreed DSTV, NC1, DXF or other digital production outputs.
- Identify missing, conflicting or impractical information through RFIs.
- Incorporate authorised engineering and fabrication comments.
- Maintain marks, drawing status, file versions and revision traceability.
What Requires the Engineer, Fabricator or Quality Authority
These decisions require explicit contractual assignment and authorised approval.
- Loads, structural analysis, member capacity and connection capacity.
- Anchor design, weld design and specialist mechanical or pressure-equipment design.
- Code interpretation, certification and professional seals.
- Material substitutions and design-change approval.
- Welding procedures, welder qualifications and shop fabrication methods.
- Machine compatibility, nesting, cutting sequence and production release.
- Coating systems, NDT, inspection and quality-plan approval.
- Handling, lifting, rigging, erection, field verification and final acceptance.
Machine-Readable Files Must Match the Released Model, Profile Catalogue and Fabricator Setup
Digital production data can improve information transfer, but it also increases the importance of version control and machine verification.
Confirm that production files were generated from the correct released model, connection status, profile catalogue and drawing revision.
Review member length, orientation, holes, slots, contours, copes, notches, bevels and datum assumptions.
Confirm units, machine type, profile naming, layer rules, tolerances, post-processor settings and client export requirements.
Digital files require review and approval within the fabricator’s production system before they are used on shop equipment.
Withdraw superseded files, regenerate affected data and communicate the relationship between revised drawings, reports and machine outputs.
Check the Model, Drawing, Material Reports and Digital Production Package
A fabrication package must remain consistent across visible drawings and machine-readable data.
Source and Setup Check
Confirm current model, engineering drawings, connection information, fabricator standards, profiles, materials, templates, marks, reports and digital-output requirements.
Assembly and Part Check
Review member geometry, included parts, dimensions, plates, holes, cuts, copes, bevels, bolts, welds, materials and assembly orientation.
Report and Data Check
Compare drawings with BOMs, bolt summaries, part lists, weights, plate templates, DSTV, NC1, DXF and other agreed production files.
Revision and Release Check
Verify RFIs, comments, authorised changes, affected files, superseded issues, release status, transmittals and fabricator approval records.
From Approved Steel Model to Authorised Production Package
The process supports complete structures, phased releases, miscellaneous-steel packages and focused drawing backlogs.
Define Shop Scope
Confirm members, outputs, standards, responsibilities and priorities.
Review Released Inputs
Validate the model, connections, comments and fabricator requirements.
Develop Assemblies
Create member and assembly drawings from controlled geometry.
Develop Parts
Create plate, part, cut, hole and component drawings.
Generate Reports
Produce BOMs, bolt lists, registers and agreed material data.
Generate Digital Files
Create specified CNC, DSTV, NC1 or DXF outputs.
Package QA/QC
Cross-check drawings, reports, files, marks and revisions.
Authorised Release
Issue the controlled package through the fabricator’s approval process.
Configure Drawings and Data around the Governing Contract and Fabricator Workflow
The live page references steel-detailing software and several fabrication drawing types. The redesigned page treats standards and technology as project-specific requirements.
The Engineer of Record, connection engineer, specialist engineer and fabricator must identify the governing standards, welding and bolting requirements, material specifications, drawing conventions, software versions, profile catalogues and production-file settings. Automated output does not replace checking or shop approval.
Production Documentation for Structural, Miscellaneous and Custom Metal Components
The page supports steel fabricators, erectors, welding firms, contractors, engineers, design firms and custom metal producers.

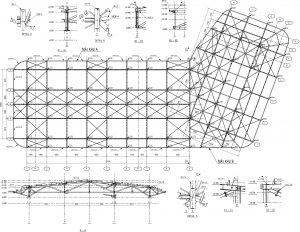

Continue to Shop Drawings, Steel Detailing, Connections and Mechanical Drafting
These pathways distinguish fabrication-specific production drawings from the broader detailing and engineering services.
Fabrication Drawing Services FAQs
Common questions about assemblies, parts, welds, bolts, BOMs, digital production files, specialist components and release responsibility.
What is included in Steel Fabrication Drawing Services?
How are fabrication drawings different from steel shop drawings?
Which information appears on an assembly drawing?
Can DSTV, NC1, DXF or CNC files be supplied?
Does the service include weld design or welding procedures?
Can mechanical or pressure-vessel fabrication drawings be included?
How is the fabrication package checked?
What information is needed for a quotation?
Need a Controlled Steel Fabrication Drawing and Production-Data Package?
Share the approved steel model, structural drawings, connection information, included assemblies and parts, fabricator standards, materials, weld and bolt requirements, drawing templates, bills of material, digital production-file requirements, review process and release programme. Structural Drafting Group will review the appropriate fabrication-documentation workflow.
