Coordinated structural models for steel framing, connections, foundations, concrete, reinforcement, precast and existing conditions—developed for defined project uses such as review, detailing, documentation, model exchange and material reporting.
Structural 3D modeling converts approved drawings, specifications, calculations, sketches, existing records or verified survey information into a digital model of the structural systems. Depending on scope, the model may include steel framing, connections, foundations, concrete, precast members, reinforcement, modular components and existing conditions.
The model may support steel detailing, BIM coordination, drawing production, quantity reporting, clash review, construction planning or record documentation. Its reliability depends on the quality of the inputs, the intended use, the model-development rules and the approval status of the represented information.
The original service list is preserved without presenting every modeling type as the same discipline or approval level.

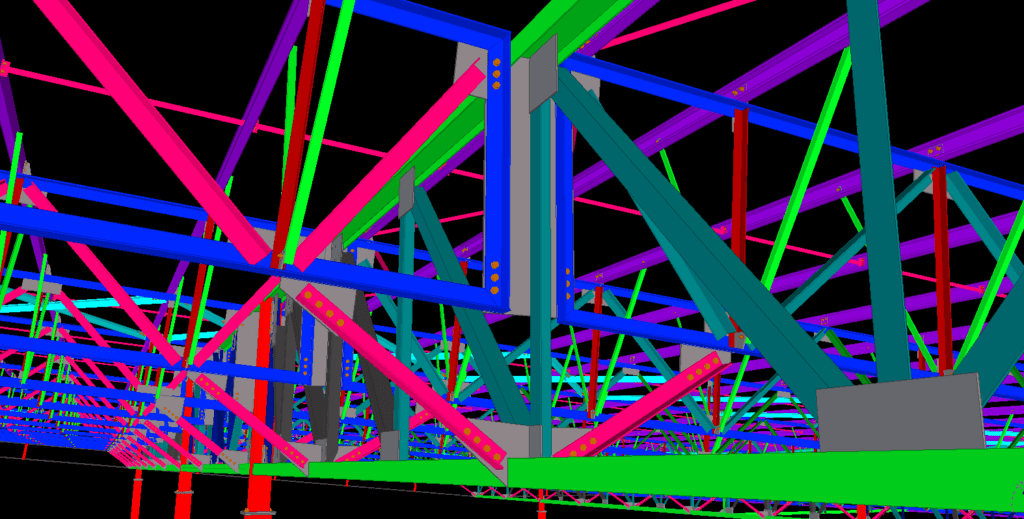

Model primary and secondary steel geometry for detailing, coordination and model-driven documentation.
Represent approved bolted, welded and project-specific connection geometry within the structural model.
Develop concrete geometry from approved structural information for BIM, coordination and documentation.
Represent approved foundation systems and their structural interfaces.
Develop reinforcement geometry and bar information from approved reinforcement design.
Model precast members, embeds and interfaces from approved manufacturer and engineering information.
Represent included non-primary structural or support elements within the coordinated project model.
Develop structural models from verified records, field data or registered point-cloud information.
Convert current CAD, PDF and drawing sets into structured 3D geometry for a defined project use.
A model created for visual coordination is not automatically suitable for fabrication, reinforcement scheduling or verified record use.
Supports spatial coordination, clash review, openings, supports and structural relationships without implying fabrication-level detail.
Includes marks, components, connections, materials, assemblies, bars or other information needed for controlled downstream outputs.
Uses agreed classifications, parameters, levels, coordinates, views, schedules and exchange rules within the project BIM process.
Represents observed or verified conditions with clear notes for scan coverage, inaccessible areas, assumptions, tolerance and source reliability.
Uses controlled properties and model status to generate quantities, schedules, material reports or other agreed project data.
A model is more than visible shapes. Its usefulness depends on the information structure and the reliability of every represented relationship.
Grids, levels, profiles, dimensions, offsets, slopes, openings, member orientation, connection geometry, clearances and tolerances.
Member names, types, materials, grades, phases, zones, marks, finishes, classifications, comments and agreed custom parameters.
Supports, hosts, connections, embeds, openings, adjacency, levels, references, interfaces and links to approved project sources.
Design, review, approval, fabrication, construction or record status, issue dates, revisions, comments and authorised changes.
| Model Type | Typical Geometry | Typical Information | Primary Use | Critical Limitation |
|---|---|---|---|---|
| Structural Steel Model | Members, connections, plates, bolts, welds and secondary steel | Marks, materials, assemblies, phases and drawing references | Detailing, coordination and fabrication documentation | Requires approved structural and connection criteria |
| Structural BIM Model | Steel, concrete, foundations, walls, slabs and openings | Classifications, parameters, levels, coordinates and schedules | BIM coordination and model-driven drawings | Model purpose and information requirements must be agreed |
| Rebar Model | Bars, meshes, couplers, laps and reinforcement zones | Bar marks, sizes, shapes, spacing and schedule properties | Coordination, placing drawings and bar schedules | Requires approved reinforcement design |
| Precast Model | Panels, beams, columns, slabs, embeds and inserts | Member IDs, materials, finishes, connections and production data | Coordination and precast documentation | Supplier and delegated-design responsibility must be defined |
| Existing-Condition Model | Visible or surveyed structural geometry and openings | Source, confidence, tolerance, scan coverage and exception notes | Retrofit, renovation and record documentation | Not a survey certificate unless expressly provided |
The scope and quotation should identify which sources govern and how conflicts will be resolved.
The project responsibility matrix must separate model production from structural design, approval and downstream release.
The modeling team develops the agreed geometry and information from approved project sources.
These decisions require explicit contractual assignment and authorised professional approval.
Most model issues occur at discipline interfaces rather than within an isolated structural element.
Confirm project origin, coordinate system, levels, rotations, units, survey references and linked-model alignment.
Review approved openings, sleeves, embeds, edge distances, support conditions and responsibility for design changes.
Identify physical conflicts, access limitations, installation zones and unresolved discipline interfaces without implying automatic design resolution.
Recheck affected structural elements, links, drawings, schedules, quantities and exported models after authorised changes.
Keep design, coordination, review, approved, fabrication, construction and record model issues clearly distinguished.
A model can look complete while still containing incorrect coordinates, levels, member sizes, properties, connections or approval status.
Confirm current inputs, coordinates, units, grids, levels, software, templates, included systems, model purpose and responsibility.
Review member positions, sizes, orientation, openings, supports, connections, foundations, concrete, reinforcement and secondary components.
Review classifications, materials, marks, phases, properties, linked models, architectural and MEP interfaces, clashes and unresolved RFIs.
Verify comments, approved changes, model versions, drawing views, schedules, quantities, exports, issue status and transmittals.
The workflow is adapted to steel, concrete, rebar, precast, existing-condition and multidisciplinary structural models.
Confirm purpose, systems, information, outputs and authority.
Validate drawings, models, calculations, surveys and revisions.
Establish origin, levels, grids, units, templates and links.
Model included structure, connections, properties and interfaces.
Review clashes, missing information and discipline conflicts.
Check geometry, data, comments, revisions and model purpose.
Deliver approved models, drawings, schedules and exchanges.
Outputs should be produced only for the agreed model use and checked against the current approved information.
The agreed authoring-platform model with defined geometry, properties, links, views, classifications and issue status.
IFC, Navisworks or other agreed exchange formats prepared with clear origin, units, scope and version information.
Plans, elevations, sections, details, steel drawings, reinforcement drawings or record documents generated from the controlled model.
Member schedules, material reports, reinforcement schedules, quantities, model audits and issue registers based on defined model properties.
The live page references Tekla, AutoCAD and Revit. The current website also uses connected structural-detailing and coordination environments.
Confirm software version, model origin, coordinates, templates, catalogues, family or component standards, classifications, parameter requirements, native-file delivery and exchange formats before production. Software automation does not replace technical checking or professional approval.
The live page’s project categories are retained without claiming that every assignment contains every modeling discipline.
These internal pathways preserve the website’s current technical hierarchy.
Common questions about structural systems, model purpose, steel, concrete, rebar, existing conditions, software and professional responsibility.
Share the intended model use, current drawings or models, included steel, concrete, reinforcement, precast or existing systems, design responsibility, software environment, coordinates, information requirements, required outputs and programme. Structural Drafting Group will review the appropriate modeling workflow.
